Space Invador de l'espace
Sommaire
Introduction
L'objectif de notre jeu est de tuer l'ennemi. Notre Space Invador se compose de 16x16 leds représentant un vaisseau et des ennemis à abattre. Grâce aux boutons poussoirs, nous pouvons commander la position du vaisseau et donc diriger les tirs.
Outil et matériel
· Carte arduino
· 16x16 leds
· Boutons poussoirs
· Câbles électroniques
· Planches de chêne
fichiers à joindre
Code Arduino
1
2 #include <FastLED.h>
3 #include <SPI.h>
4
5 #define NUM_STRIPS 1
6 #define NUM_LEDS_PER_STRIP 256
7 CRGB leds[NUM_STRIPS][NUM_LEDS_PER_STRIP];
8
9 int color[5] {0x000000,0x000001,0x010000,0x000100,0x010100};
10 int position, position_vaisseau = 4, delay_tire = 0, level = 1;
11 bool vivant = true, en_partie = true, ennemi = true;
12
13 int level_actuelle[16][16];
14
15 const int level_1[16][16] { \
16 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
17 {0, 0, 0, 2, 2, 2, 0, 0, 0, 0, 2, 2, 2, 0, 0, 0}, \
18 {0, 0, 0, 0, 2, 0, 0, 0, 0, 0, 0, 2, 0, 0, 0, 0}, \
19 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
20 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
21 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
22 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
23 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
24 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
25 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
26 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
27 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
28 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
29 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
30 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
31 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0} \
32 };
33
34 const int level_2[16][16] { \
35 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
36 {0, 0, 2, 2, 0, 0, 2, 2, 2, 2, 0, 0, 2, 2, 0, 0}, \
37 {0, 0, 2, 2, 0, 0, 0, 2, 2, 0, 0, 0, 2, 2, 0, 0}, \
38 {0, 0, 0, 0, 0, 0, 0, 2, 2, 0, 0, 0, 0, 0, 0, 0}, \
39 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
40 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
41 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
42 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
43 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
44 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
45 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
46 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
47 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
48 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
49 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
50 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0} \
51 };
52
53 const int level_3[16][16] { \
54 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
55 {0, 0, 0, 2, 0, 0, 0, 2, 2, 0, 0, 0, 2, 0, 0, 0}, \
56 {0, 0, 2, 2, 2, 0, 2, 2, 2, 2, 0, 2, 2, 2, 0, 0}, \
57 {0, 0, 2, 0, 2, 0, 0, 2, 2, 0, 0, 2, 0, 2, 0, 0}, \
58 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
59 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
60 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
61 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
62 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
63 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
64 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
65 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
66 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
67 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
68 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
69 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0} \
70 };
71
72 const int level_4[16][16] { \
73 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
74 {0, 0, 0, 0, 0, 0, 2, 2, 2, 2, 0, 0, 0, 0, 0, 0}, \
75 {0, 0, 0, 0, 0, 2, 2, 2, 2, 2, 2, 0, 0, 0, 0, 0}, \
76 {0, 0, 0, 0, 2, 2, 2, 2, 2, 2, 2, 2, 0, 0, 0, 0}, \
77 {0, 0, 0, 0, 2, 2, 0, 2, 2, 0, 2, 2, 0, 0, 0, 0}, \
78 {0, 0, 0, 0, 0, 2, 0, 0, 0, 0, 2, 0, 0, 0, 0, 0}, \
79 {0, 0, 0, 0, 0, 2, 0, 0, 0, 0, 2, 0, 0, 0, 0, 0}, \
80 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
81 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
82 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
83 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
84 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
85 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
86 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
87 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
88 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0} \
89 };
90
91 const int game_over[16][16] { \
92 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
93 {2, 2, 2, 0, 2, 2, 2, 0, 2, 0, 2, 0, 2, 2, 2, 0}, \
94 {2, 0, 0, 0, 2, 0, 2, 0, 2, 2, 2, 0, 2, 0, 0, 0}, \
95 {2, 0, 2, 0, 2, 2, 2, 0, 2, 0, 2, 0, 2, 2, 0, 0}, \
96 {2, 0, 2, 0, 2, 0, 2, 0, 2, 0, 2, 0, 2, 0, 0, 0}, \
97 {2, 2, 2, 0, 2, 0, 2, 0, 2, 0, 2, 0, 2, 2, 2, 0}, \
98 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
99 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
100 {0, 2, 2, 2, 0, 2, 0, 2, 0, 2, 2, 2, 0, 2, 2, 2}, \
101 {0, 2, 0, 2, 0, 2, 0, 2, 0, 2, 0, 0, 0, 2, 0, 2}, \
102 {0, 2, 0, 2, 0, 2, 0, 2, 0, 2, 2, 0, 0, 2, 2, 0}, \
103 {0, 2, 0, 2, 0, 2, 0, 2, 0, 2, 0, 0, 0, 2, 0, 2}, \
104 {0, 2, 2, 2, 0, 0, 2, 0, 0, 2, 2, 2, 0, 2, 0, 2}, \
105 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
106 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
107 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0} \
108 };
109
110 const int win[16][16] { \
111 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
112 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
113 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
114 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
115 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
116 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
117 {0, 2, 0, 0, 0, 2, 0, 2, 2, 2, 0, 2, 0, 0, 2, 0}, \
118 {0, 2, 0, 2, 0, 2, 0, 0, 2, 0, 0, 2, 2, 0, 2, 0}, \
119 {0, 2, 0, 2, 0, 2, 0, 0, 2, 0, 0, 2, 0, 2, 2, 0}, \
120 {0, 0, 2, 0, 2, 0, 0, 2, 2, 2, 0, 2, 0, 0, 2, 0}, \
121 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
122 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
123 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
124 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
125 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}, \
126 {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0} \
127 };
128
129
130 void setup() {
131 // tell FastLED there's 60 NEOPIXEL leds on pin 2
132 FastLED.addLeds<NEOPIXEL, 2>(leds[0], NUM_LEDS_PER_STRIP);
133
134 // tell FastLED there's 60 NEOPIXEL leds on pin 3
135 FastLED.addLeds<NEOPIXEL, 3>(leds[1], NUM_LEDS_PER_STRIP);
136
137 // tell FastLED there's 60 NEOPIXEL leds on pin 4
138 FastLED.addLeds<NEOPIXEL, 4>(leds[2], NUM_LEDS_PER_STRIP);
139 Serial.begin(9600);
140
141 memcpy(level_actuelle,level_1,sizeof(level_1));
142
143 pinMode(A0,INPUT);
144 pinMode(D7,INPUT);
145 }
146
147
148 void affiche() {
149 //carte
150 for(int x = 0; x < 16; x++) {
151 for(int y = 0; y < 16;y++){
152 if (x%2 == 1){
153 position = x*16+y;
154 }
155 else{
156 position = x*16+15-y;
157 }
158 leds[0][position] = color[level_actuelle[x][y]];
159 }
160 }
161
162 FastLED.show();
163 }
164
165 void create_vaisseau(){
166 //pos entre 2 et 15
167 clear();
168 level_actuelle[13][position_vaisseau] = 1;
169 level_actuelle[13][position_vaisseau-1] = 1;
170 level_actuelle[12][position_vaisseau-1] = 1;
171 level_actuelle[13][position_vaisseau-2] = 1;
172 level_actuelle[14][position_vaisseau-2] = 1;
173 level_actuelle[14][position_vaisseau] = 1;
174 FastLED.show();
175 }
176
177 void clear(){
178 for(int x = 10; x < 15; x++) {
179 for(int y = 0; y < 16;y++){
180 if (level_actuelle[x][y] == 1){
181 level_actuelle[x][y] = 0;
182 }
183 }
184 }
185 }
186
187
188 void move(){
189 position_vaisseau = int(analogRead(A0)*16/1024);
190 if (position_vaisseau >= 16){
191 position_vaisseau = 15;
192 }
193 else if (position_vaisseau <= 1){
194 position_vaisseau = 2;
195 }
196 }
197
198 void tirer() {
199 if (true) {
200 level_actuelle[11][position_vaisseau-1] = 103;
201 }
202 }
203
204 void tick(){
205 ennemi = false;
206 for(int x = 0; x < 16; x++) {
207 for(int y = 0; y < 16;y++){
208 if (level_actuelle[x][y] == 3){ //tire joueur
209 if (x==0){
210 level_actuelle[x][y] = 0;
211 }
212 else if ((level_actuelle[x-1][y]==4) || (level_actuelle[x-1][y]==104)){
213 level_actuelle[x-1][y] = 3;
214 level_actuelle[x][y] = 104;
215 }
216 else if (level_actuelle[x-1][y]!=0){
217 level_actuelle[x-1][y] = 0;
218 level_actuelle[x][y] = 0;
219 }
220 else{
221 level_actuelle[x-1][y] = 3;
222 level_actuelle[x][y] = 0;
223 }
224 }
225
226 else if (level_actuelle[x][y] == 2){ //vaisseau enemi
227 ennemi = true;
228 if ((level_actuelle[x+1][y] == 0)&(random(0,40)==1)){
229 level_actuelle[x+1][y] = 104; //chiffre temporaire pour pas refaire son action
230 }
231 }
232 else if (level_actuelle[x][y] == 104){
233 level_actuelle[x][y] = 4;
234 }
235 else if (level_actuelle[x][y] == 103){
236 level_actuelle[x][y] = 3;
237 }
238 else if (level_actuelle[x][y]== 4){
239 if (x==15){
240 level_actuelle[x][y] = 0;
241 }
242 if ((level_actuelle[x+1][y] == 0) &(x<15)){
243 level_actuelle[x+1][y] = 104;
244 level_actuelle[x][y] = 0;
245 }
246 else if (level_actuelle[x+1][y] == 3){
247 level_actuelle[x+1][y] = 104;
248 level_actuelle[x][y] = 3;
249 }
250 else if (level_actuelle[x+1][y] == 1){
251 level_actuelle[x][y] = 0;
252 //game over
253 en_partie = false;
254 vivant = false;
255 }
256 }
257 }
258 }
259 }
260
261 void loop() {
262 while (en_partie){
263 tick();
264 affiche();
265 create_vaisseau();
266 if ((digitalRead(D7)) & (delay_tire == 0)){
267 tirer();
268 delay_tire = 2;
269 }
270 else if (delay_tire !=0){
271 delay_tire -= 1;
272 }
273 move();
274 if (!ennemi){
275 if (level == 4){
276 en_partie = false;
277
278 }
279 else{
280 level +=1;
281 }
282
283 if(level==2){
284 memcpy(level_actuelle,level_2,sizeof(level_2));
285 }
286 else if(level==3){
287 memcpy(level_actuelle,level_3,sizeof(level_3));
288 }
289 else if(level==4){
290 memcpy(level_actuelle,level_4,sizeof(level_4));
291 }
292 }
293 delay(75);
294 }
295 if (vivant){
296 memcpy(level_actuelle,win,sizeof(win));
297 }
298 else{
299 memcpy(level_actuelle,game_over,sizeof(game_over));
300 }
301 affiche();
302 delay(200);
303 if (digitalRead(D7)){
304 memcpy(level_actuelle,level_1,sizeof(level_1));
305 level = 1;
306 vivant = true;
307 en_partie = true;
308 }
309 }
étapes de fabrication
étape 1

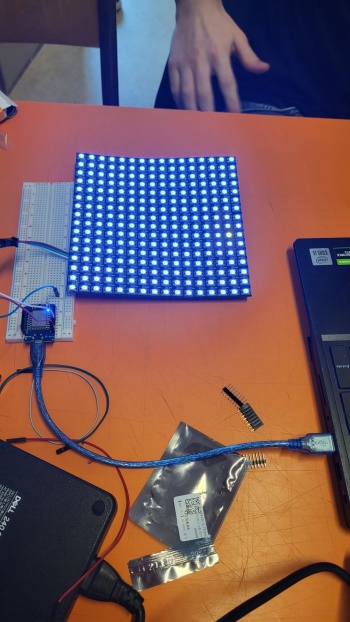

Création du code arduino et test de celui-ci sur la carte. Toutes nos leds s'allument.
étape 2

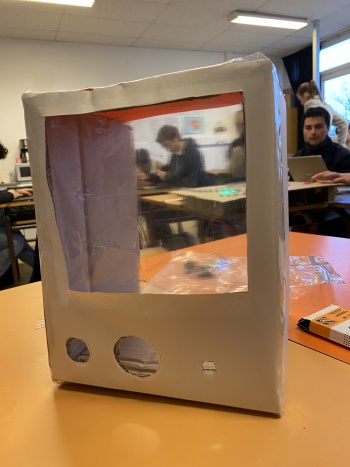

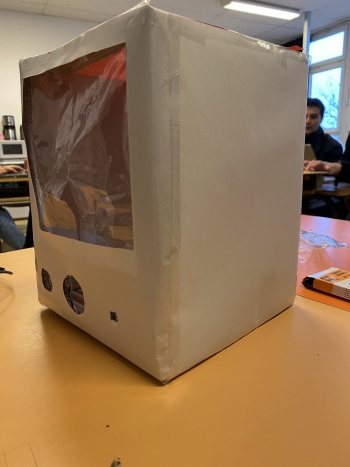

Création de la maquette en carton. Ce n'est pas la version finale, juste le prototype.

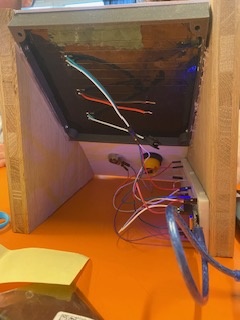

Création de la maquette finale en bois.

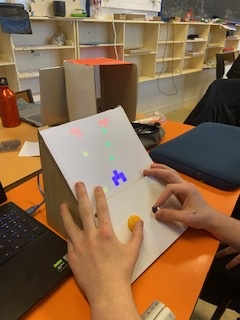

étape 3
Test du jeu.
Troubleshouting
Difficultés rencontrées : création du code arduino
Solutions : test du code, analyse des erreurs, aide des intervenants
Sources et documentation complémentaire
- https://www.makercase.com/#/
- https://www.festi.info/boxes.py/
- https://boxdesigner.connectionlab.org/
